Applications
• 1HU, 4HU modular fiber patch panels are used in MDA, IDA or HDA for fiber Cable distribution and management.
Features
• Modular and ergonomic design with front and rear drawers for ease of installation and maintenance.

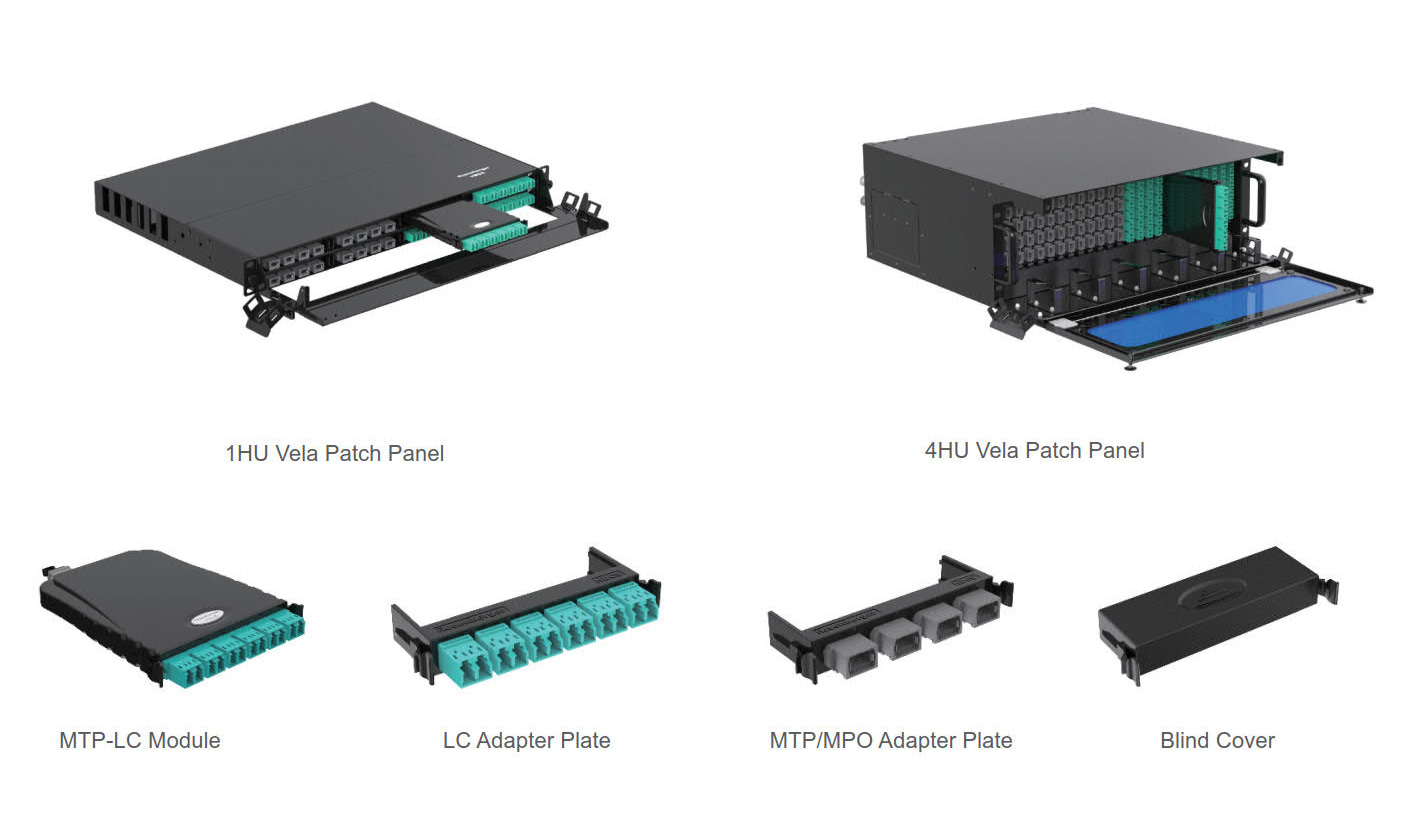

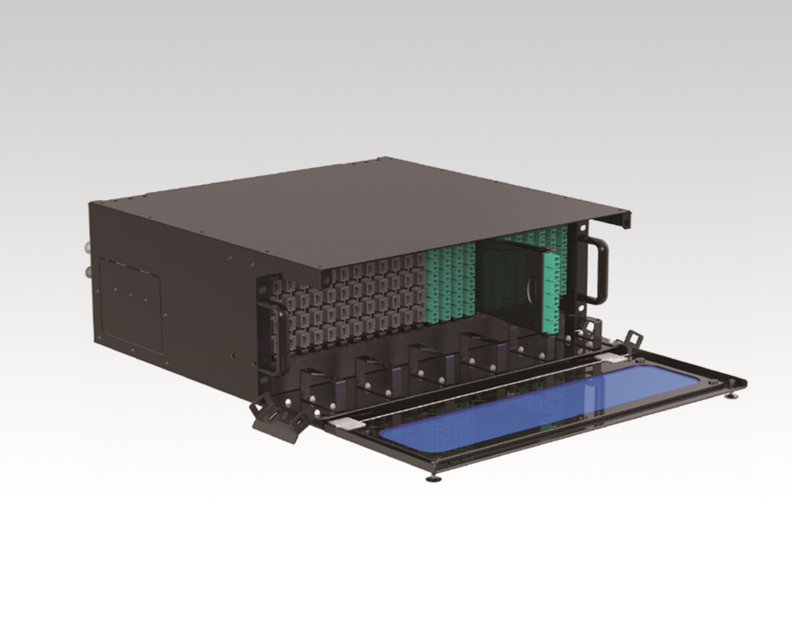

• 1HU and 4HU could handle 96 fibers and 288 fibers respectively.
• The connectivity capacity can be up to 12 fibers for each module and front plate with an LC interface.
• PreCONNECT fiber module accepts multi-mode 50/125umOM2, OM3, OM4, OM5 or a low water- peak singlemode9/ 125um fiber cable harness.
• Rear cabling manager with layered design and pull-out rotation function.
• Label panel has hidden drawer design, it can hang downwards after pull-out for better observation.
Technical Parameters
• The outer shape of the patch panel complies with ETSI 1HU and 4HU standards.
• Salt mist cyclic test (24H).
• Attenuation (Typical): single-mode MTP-LC module 0.5dB, multimode MTP-LC module 0.4dB.
• Storage temperature: -40°C ~ +70°C.
• Operation temperature: -20°C ~ +60°C.
Relative Standards
• ANSI/TIA-942-B
• ANSI/TIA-568-D.3
• ISO/IEC 24764
• ISO/IEC 60794
• ISO/IEC 61754
• EN 50173-5

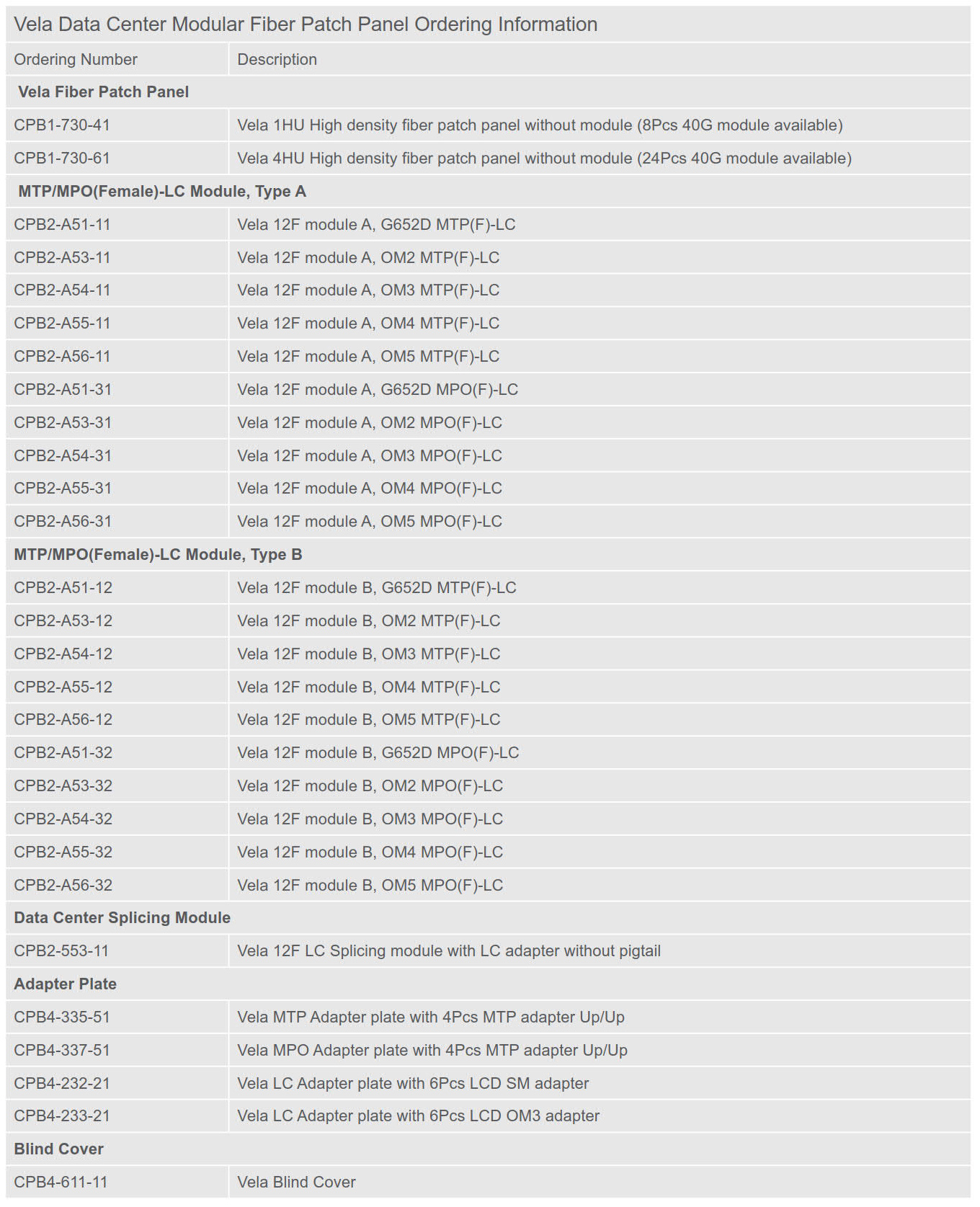

Ordering Information
