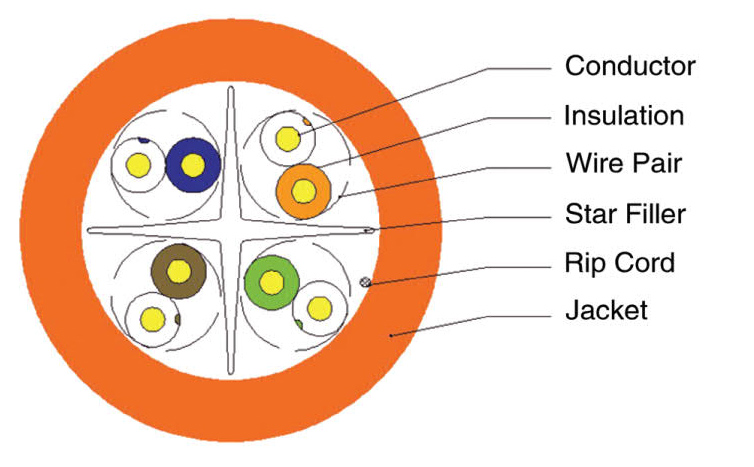

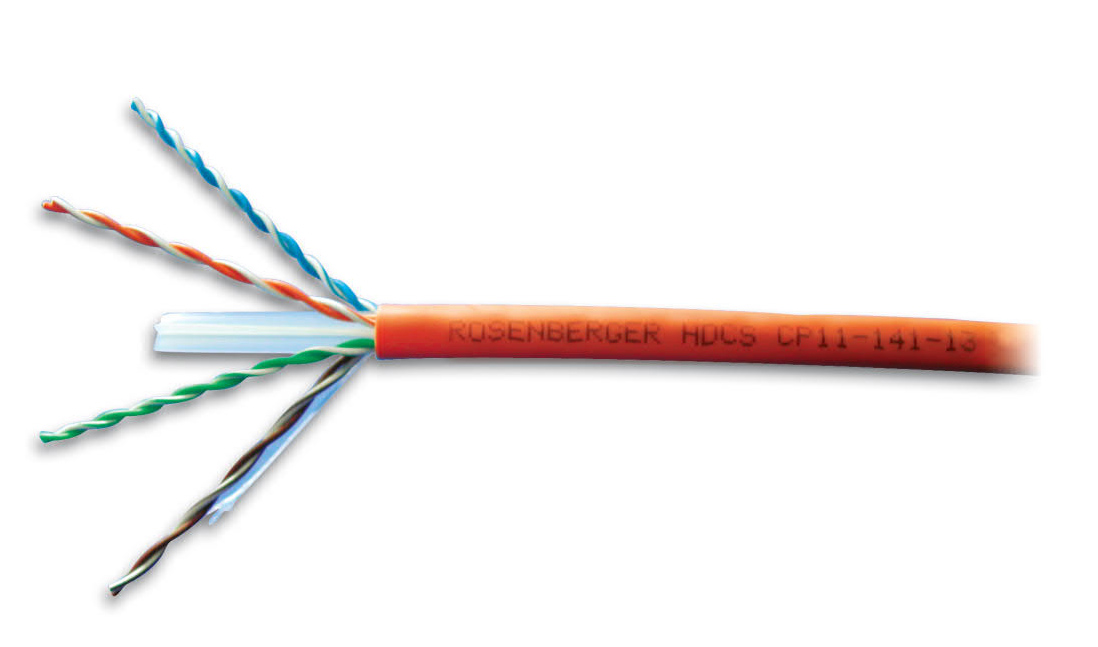

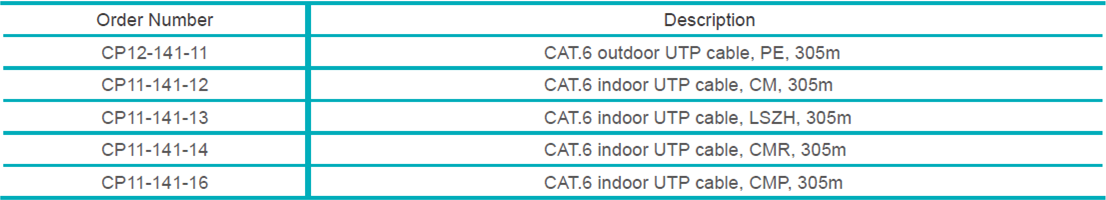

Mechanical Performance at 20°C
| Bending Radius | During Installation (min.) | |
| Installed (min.) | ||
| Temperature Range | During Installation | |
| Installed | ||
| 8×outer diameter |
| 4×outer diameter |
| 0°C to +50°C |
| -20°C to +60°C |
Electrical Performance at 20°C
| DC Resistance | ||
| Unbalanced Resistance | ||
| Unbalance Capacitance | ||
| Capacitance | ||
| Dielectric Strength | ||
| Insulation Resistance | ||
| Impedance | 1~250MHz | |
| 250~600MHz | ||
| Delay Skew | ||
| ≤7.5 Ohm/100m |
| ≤5% |
| ≤330pF/100m |
| ≤5.6nF/100m |
| DC 1kv (3s No Fail) |
| ≥5000Mohm.Km |
| (100±15) Ohm |
| (100±25) Ohm |
| ≤45ns |
High Frequency Performance at 20°C
| Frequency (MHz) | ||
| Attenuation (dB/100m) | Max. | |

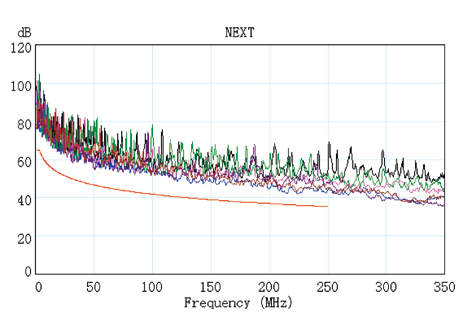

| NEXT (dB) | Min. | |
| RL (dB) | Min. | |
| PSNEXT (dB) | Min. | |
| ELFEXT (dB) | Min. | |
| PSELFEXT (dB) | Min. | |

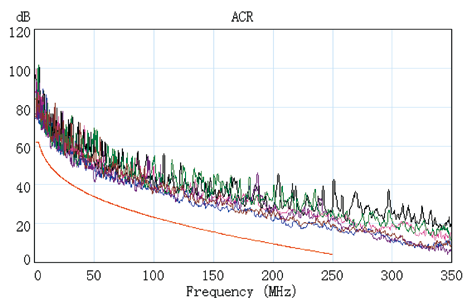

| ACR (dB) | Min. | |
| Propagation Delay (ns/100m) | Max. | |
| 1.0 | 4.0 | 8.0 | 10.0 | 16.0 | 20.0 | 25.0 | 31.25 | 62.5 | 100.0 | 150 | 200 | 250 | 300 | 600 |
| 2.0 | 3.8 | 5.3 | 6.0 | 7.6 | 8.5 | 9.5 | 10.7 | 15.4 | 19.8 | 24.7 | 29.0 | 32.8 | 35.0 | 53.1 |
| 74.3 | 65.3 | 60.8 | 59.3 | 56.2 | 54.8 | 53.3 | 51.9 | 47.4 | 44.3 | 41.7 | 39.8 | 38.3 | 37.5 | 33.0 |
| 20.0 | 23.0 | 24.5 | 25.0 | 25.0 | 25.0 | 24.3 | 23.6 | 21.5 | 20.1 | 18.9 | 18.0 | 17.3 | 17.0 | 15.0 |
| 72.3 | 63.3 | 58.8 | 57.3 | 54.2 | 52.8 | 51.3 | 49.9 | 45.4 | 42.3 | 39.7 | 37.8 | 36.3 | 35.5 | 32.5 |
| 67.8 | 55.8 | 49.7 | 47.8 | 43.7 | 41.8 | 39.8 | 37.9 | 31.9 | 27.8 | 24.3 | 21.8 | 19.8 | 19.2 | 11.0 |
| 64.8 | 52.8 | 46.7 | 44.8 | 40.7 | 38.8 | 36.8 | 34.9 | 28.9 | 24.8 | 21.3 | 18.8 | 16.8 | 15.5 | 9.5 |
| 72 | 61 | 55 | 53 | 49 | 46 | 44 | 41 | 32 | 25 | 16.9 | 10.8 | 5.5 | 2.5 | -20 |
| 570.0 | 552.0 | 546.7 | 545.4 | 543.0 | 542.0 | 541.2 | 540.4 | 538.6 | 537.6 | 536.9 | 536.5 | 536.3 | 536.1 | 535.5 |
