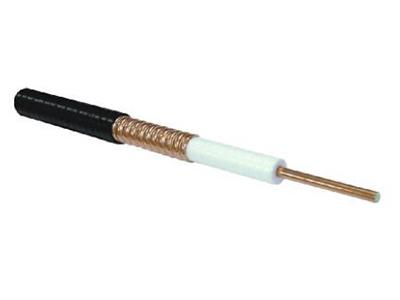

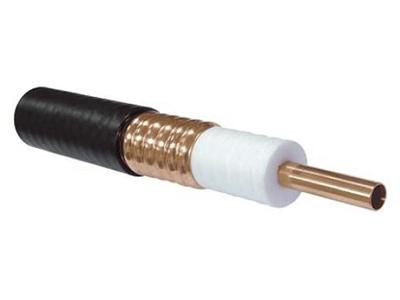

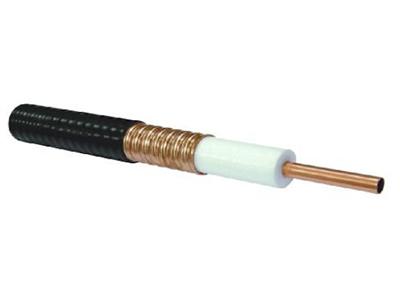

Material
| Inner Conductor | ||
| Dielectric | ||
| Outer Conductor | ||
| Jacket |
| Copper clad aluminum wire |
| Foam PE |
| Corrugated copper tube |
| PE (or FRNC, Flame Retardant Non Corrosive) |
Mechanical Data
| Cable Dimension (inch) | ||
| Tensile Strength(N) | ||
| Min.Bending Radius(single) (mm) | ||
| Min.Bending Radius(repented) (mm) | ||
| Number of Bends,Minimum (typical) | ||
| Recommended Hanger Spacing (m) | ||
| Installation Temperature (℃) | ||
| Operating Temperature (℃) | ||
| Storage Temperature (℃) |
| 1/2 |
| 1150 |
| 70 |
| 125 |
| 15(50) |
| 0.8 |
| -25 ~ +60 |
| -40 ~ +85 |
| -70 ~ +85 |
Electrical Data
| Impedance (Ω) | ||
| Relative Velocity of Propagation (%) | ||
| Capacitance (pF/m) | ||
| Inductance (μH/m) | ||
| Maximum Operating Frequency (GHz) | ||
| Cut-off Frequency (GHz) | ||
| Peak Power Rating (kw) | ||
| DC Breakdown Boltage (V) | ||
| Jacket Spark Test Voltage (V) | ||
| Inner Conduct DC-Resistance (Ω/km) | ||
| Outer Conductor DC-Resistance (Ω/km) | ||
| Return Loss (dB) | 800~1000MHz | |
| Return Loss (dB) | 1700~2500MHz | |
| Return Loss (dB) | 2500~3000MHz | |
| 50 |
| 88 |
| 76 |
| 0.190 |
| 8.8 |
| 10.0 |
| 40 |
| 6000 |
| 8000 |
| ≤1.55 |
| ≤2.7 |
| ≤ -26 |
| ≤ -24 |
| ≤ -24 |
Attenuation and Power
| Frequency (MHz) | ||
| 100 | ||
| 200 | ||
| 300 | ||
| 400 | ||
| 450 | ||
| 800 | ||
| 900 | ||
| 1000 | ||
| 1800 | ||
| 2000 | ||
| 2200 | ||
| 2500 | ||
| 2700 | ||
| 3000 |
| Attenuation (dB/100m) | Average power (kw) |
| 2.15 | 3.94 |
| 3.08 | 2.75 |
| 3.81 | 1.99 |
| 4.43 | 1.80 |
| 4.70 | 1.80 |
| 6.35 | 1.33 |
| 6.75 | 1.25 |
| 7.20 | 1.18 |
| 9.90 | 0.86 |
| 10.5 | 0.81 |
| 11.1 | 0.77 |
| 11.9 | 0.73 |
| 12.4 | 0.69 |
| 13.2 | 0.65 |
Remark
| Remark1 | ||
| Remark2 |
| Standard Conditions: Attenuation at ambient temperature 20°C Average power at ambient temperature 40°C and inner conductor temperature 100°C |
| Maximum attenuation value shall be 105% of the nominal attenuation value |
